Chapter 19 Validation
As explained in the Overview, LTabundR
was developed , among other reasons, to replace and build upon the FORTRAN
software ABUND
. To demonstrate that this purpose has been achieved, and to validate the results that are generated with LTabundR
, this chapter is dedicated to comparing and contrasting the results of the two software packages.
We have tried to develop LTabundR
with the flexibility either to replicate ABUND
results or to produce customizable results that could potentially vary from ABUND
quite significantly (e.g., formatted for habitat modeling). However, even when we use LTabundR
settings intended to replicate ABUND
results, there are some intentional updates the processing routine that will lead to some small differences.
This chapter requires the following packages:
Data processing
To validate the data processing functions within LTabundR
, we can compare its output to that of ABUND9
, written by Jay Barlow (NOAA Fisheries). First, we bring in the ABUND9
output files for the same DAS
data:
# Local paths to these files
SIGHTS <- read.csv('data/SIGHTS.csv')
EFFORT <- read.csv('data/EFFORT.csv')
You may download these files here: SIGHTS.csv
and EFFORT.csv
.
Sightings
Pivot and format the ABUND
SIGHTS
data…
abund <-
SIGHTS %>%
pivot_longer(cols = 31:101,
names_to = 'species',
values_to = 'best') %>%
filter(best > 0) %>%
mutate(Region = gsub(' ','',Region)) %>%
mutate(DateTime = paste0(Yr,'-',Mo,'-',Da,' ',Hr,':',Min))
…then summarize counts of species within each cruise:
abund_summ <-
abund %>%
group_by(cruise = CruzNo, species) %>%
summarize(ntot_abund = n(),
nsys_abund = length(which(! Region %in% c('NONE',
'Off-Transect') &
EffortSeg > 0))) %>%
mutate(species = gsub('SP','',species))
Then do the same for LTabundR
output:
(This cruz
object was produced in the Data Processing chapter.)
ltabundr <-
cruz$cohorts$all$sightings %>%
# Filter out species that ABUND ignored based on its INP file
filter(!species %in% c('CU', 'PU'))
ltabundr_summ <-
ltabundr %>%
filter(OnEffort == TRUE) %>%
group_by(cruise = Cruise, species) %>%
summarize(ntot_ltabundr = n(),
nsys_ltabundr = length(which(included == TRUE &
EffType %in% c('S','F'))))
Now join these two datasets by cruise and species code:
mr <- full_join(abund_summ, ltabundr_summ, by=c('cruise', 'species'))
mr %>% head
# A tibble: 6 × 6
# Groups: cruise [1]
cruise species ntot_abund nsys_abund ntot_ltabundr nsys_ltabundr
<dbl> <chr> <int> <int> <int> <int>
1 901 002 3 2 3 2
2 901 013 4 4 4 4
3 901 015 2 1 2 1
4 901 018 2 1 2 1
5 901 031 1 1 1 1
6 901 032 2 0 2 0

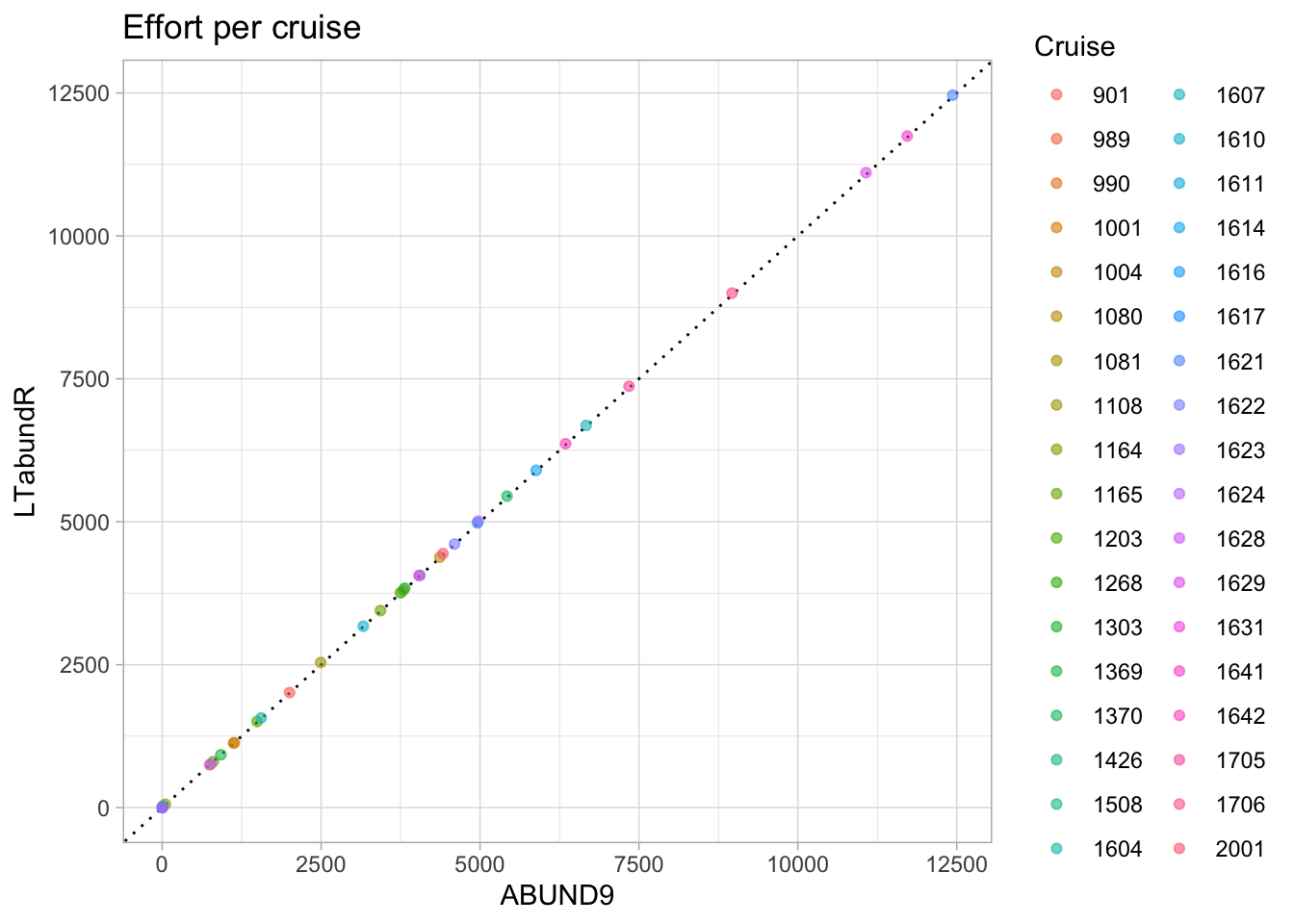

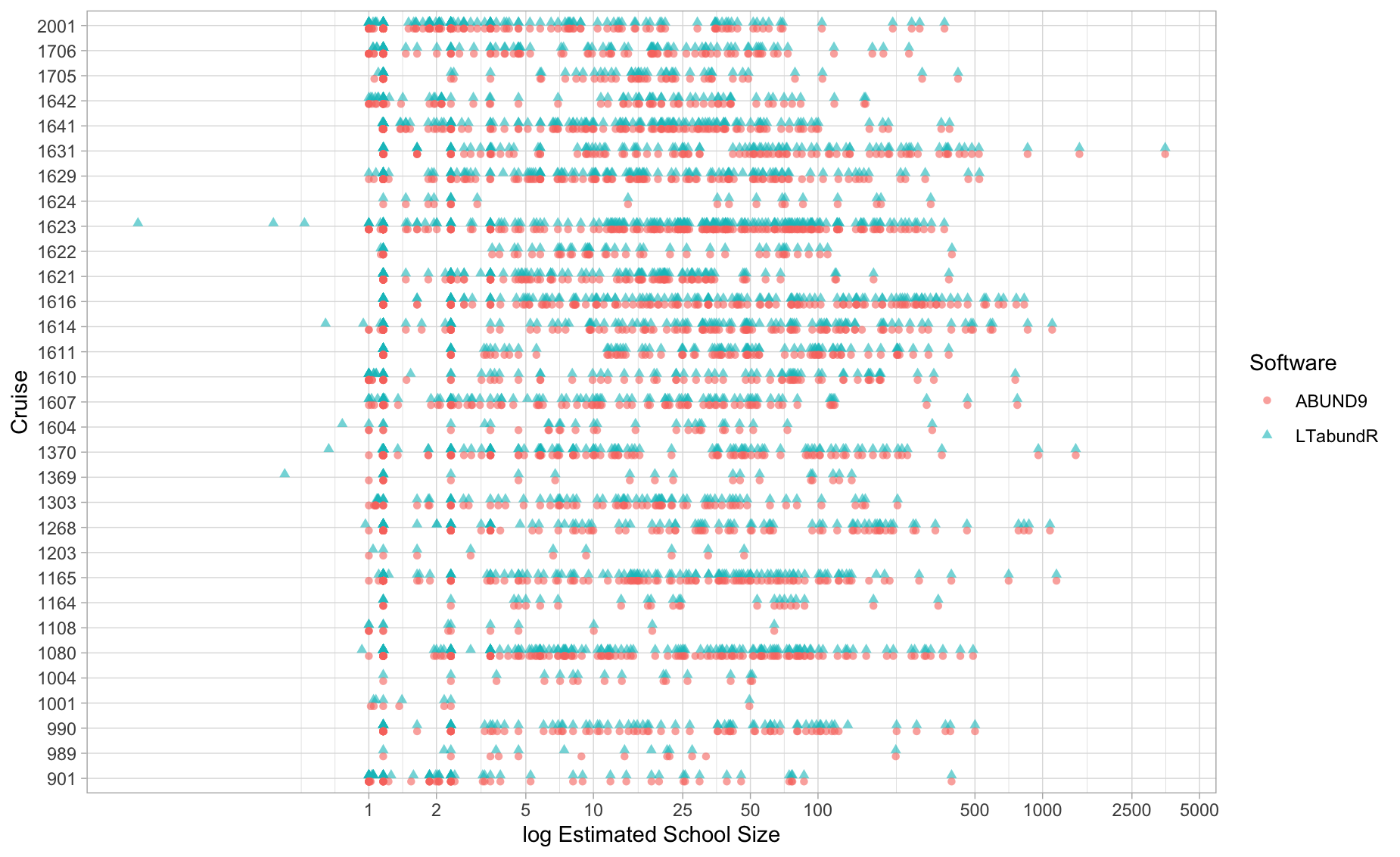

Compare the total On-Effort sightings in both outputs:
Compare total sightings valid for use in density estimation (EffType
"S"
or "F"
only, as well as other criteria such as Bft 0 - 6):
Let’s find the rows with discrepancies in sighting counts:
bads <- which(mr$nsys_abund != mr$nsys_ltabundr |
mr$ntot_abund != mr$ntot_ltabundr |
is.na(mr$ntot_abund) |
is.na(mr$ntot_ltabundr) |
is.na(mr$nsys_abund) |
is.na(mr$nsys_ltabundr))
bads %>% length
[1] 7
Let’s look at those rows in the joined dataframe:
mr[bads, ]
# A tibble: 7 × 6
# Groups: cruise [5]
cruise species ntot_abund nsys_abund ntot_ltabundr nsys_ltabundr
<dbl> <chr> <int> <int> <int> <int>
1 1203 015 1 0 2 0
2 1203 049 1 1 2 1
3 1621 073 5 4 5 3
4 2001 051 2 2 1 1
5 2001 059 1 0 2 1
6 1165 047 NA NA 1 1
7 1631 003 NA NA 1 0
To investigate these 5 discrepancies, we will write a helper function that returns sightings details from both outputs for a given cruise-species:
sight_compare <- function(abund, ltabundr, cruise, spp){
message('ABUND:')
abund %>%
filter(CruzNo == cruise, species == paste0('SP',spp)) %>%
select(5, 34, 26, 29, 33, 3) %>%
mutate(use_sit = EffortSeg != 0) %>%
select(-EffortSeg) %>%
arrange(desc(use_sit)) %>%
print
abund %>%
filter(CruzNo == 1631) %>% pull(species) %>% table
message('\nLTabundR:')
ltabundr %>%
filter(Cruise == cruise, species == spp) %>%
select(Cruise, DateTime, Bft, mixed, best, OnEffort, EffType, use, included) %>%
rename(use_sit = included, use_effort = use) %>%
arrange(desc(use_effort)) %>%
tibble %>% print
}
Discrepancies
Below we investigate each discrepancy identified above. Note that there are a few intentional design features that may produce differences in the sightings counts between ABUND9
and LTabundR
. Here are a few:
(1) In ABUND9
, only sightings that occur while OnEffort == TRUE
are returned; in contrast, LTabundR
does not remove any sightings (it just flags them differently, using the included
column variable). This will be evident in one of the discrepancies below, in which a sighting that occurred during a Beaufort Sea State of 7 is not returned by ABUND9
, since the INP
file for the ABUND
routine specified that only sightings within Bft 0-6 should be used in analysis. Note, however, that one can readily filter LTabundR
sightings to emulate ABUND9
output if needed.
(2) LTabundR
includes one additional criterion for inclusion in analysis: the sighting must occur at or forward of the beam (note that this restriction can be deactivated in load_cohort_settings()
.
(3) Since point-in-polygon calculations are very different in the two programs, it is possible that sightings occurring very near geostratum margins may be included/excluded differently.
Cruise 1203, Species 015
In this case, LTabundR
has a non-systematic sighting that ABUND
has ignored.
sight_compare(abund, ltabundr, 1203, '015')
ABUND:
# A tibble: 1 × 6
CruzNo DateTime Beauf Mixed best use_sit
<int> <chr> <int> <chr> <dbl> <lgl>
1 1203 2012-5-16 11:58 4 " F" 74.9 TRUE
LTabundR:
# A tibble: 2 × 9
Cruise DateTime Bft mixed best OnEffort EffType use_effort
<dbl> <dttm> <dbl> <lgl> <dbl> <lgl> <chr> <lgl>
1 1203 2012-05-13 13:19:44 5 TRUE NaN TRUE N TRUE
2 1203 2012-05-16 11:58:30 4 FALSE 74.9 TRUE N TRUE
# ℹ 1 more variable: use_sit <lgl>
Looking at the sighting details from LTabundR
…
(ltabundr %>% filter(Cruise == 1203, species == '015'))[1,]
Event DateTime Lat Lon OnEffort Cruise Mode OffsetGMT
270 S 2012-05-13 13:19:44 11.96733 -161.1727 TRUE 1203 C -10
EffType ESWsides Course SpdKt Bft SwellHght WindSpdKt RainFog HorizSun
270 N 2 18 9.2 5 6 21 5 12
VertSun Glare Vis ObsL Rec ObsR ObsInd EffortDot EventNum
270 12 FALSE 6 073 235 280 <NA> TRUE 268
file_das line_num stratum_HI_EEZ
270 CenPac1986-2020_Final_alb_edited.das 493027 FALSE
stratum_OtherCNP stratum_WHICEAS year month day yday km_valid km_int
270 TRUE FALSE 2012 5 13 134 TRUE 0
km_cum ship stratum use eff_bloc seg_id SightNo Subgroup SightNoDaily
270 191053.4 OES OtherCNP TRUE 57-2 2330 069 <NA> 20120513_20
Obs ObsStd Bearing Reticle DistNm Cue Method Photos Birds CalibSchool
270 235 TRUE 90 NA 0.1 3 1 Y Y N
PhotosAerial Biopsy CourseSchool TurtleSp TurtleGs TurtleJFR TurtleAge
270 N N NA <NA> NA <NA> <NA>
TurtleCapt PinnipedSp PinnipedGs BoatType BoatGs PerpDistKm species best
270 <NA> <NA> NA <NA> NA 0.1852 015 NaN
low high prob mixed ss_tot lnsstot ss_percent n_sp n_obs n_best n_low
270 NaN NaN FALSE TRUE 6.956522 1.93968 NaN 2 1 1 1
n_high calibr ss_valid mixed_max spp_max included
270 1 TRUE FALSE FALSE <NA> TRUE
According to ABUND
, this sighting is not mixed-species, but LTabundR
says it is. Looking at the raw DAS
…
das_file <- 'data/surveys/CenPac1986-2020_Final_alb.das'
das <- das_readtext(das_file)
i <- which(substr(das$das, 6, 18) == '131944 051312')
das$das[i]
[1] "268S.131944 051312 N11:58.04 W161:10.36 069 235 3 1 090 0.10 N N N"
[2] "269A.131944 051312 N11:58.04 W161:10.36 069 Y Y 033 015 "
[3] "269C.131944 051312 N11:58.04 W161:10.36 Overall estimate for full group- never saw all at once. -EMO"
[4] "268G.131944 051312 N11:58.04 W161:10.36 069 A 235 1 090 0.10 "
[5] "269A.131944 051312 N11:58.04 W161:10.36 069 Y Y 033 015"
[6] "269C.131944 051312 N11:58.04 W161:10.36 begin PC protool, first sighting is subgroup 'A', acoustics already tracking "
[7] "269C.131944 051312 N11:58.04 W161:10.36 photos taken during sighting indicate Steno (015) present. Not seen or estimated during sighting. -EMO"
We see that this was a sighting of false killer whales during which species 015
was picked up during photo-ID. In the absence of a percent composition estimate for this sighting, it was ignored by ABUND
.
Cruise 1203, Species 049
In this case, LTabundR
has a non-systematic sighting that ABUND
has ignored.
sight_compare(abund, ltabundr, 1203, '049')
ABUND:
# A tibble: 1 × 6
CruzNo DateTime Beauf Mixed best use_sit
<int> <chr> <int> <chr> <dbl> <lgl>
1 1203 2012-5-3 14:21 6 " F" 1.16 TRUE
LTabundR:
# A tibble: 2 × 9
Cruise DateTime Bft mixed best OnEffort EffType use_effort
<dbl> <dttm> <dbl> <lgl> <dbl> <lgl> <chr> <lgl>
1 1203 2012-05-03 14:21:40 6 FALSE 1.16 TRUE S TRUE
2 1203 2012-05-07 10:54:09 7 FALSE 1 TRUE N FALSE
# ℹ 1 more variable: use_sit <lgl>
Looking at the sighting details from LTabundR
…
(ltabundr %>% filter(Cruise == 1203, species == '049'))[2,]
Event DateTime Lat Lon OnEffort Cruise Mode
1544 S 2012-05-07 10:54:09 5.960333 -162.1255 TRUE 1203 C
OffsetGMT EffType ESWsides Course SpdKt Bft SwellHght WindSpdKt RainFog
1544 -10 N 2 269 8.8 7 9 30 5
HorizSun VertSun Glare Vis ObsL Rec ObsR ObsInd EffortDot EventNum
1544 5 1 FALSE 4.5 238 328 073 <NA> TRUE 145
file_das line_num stratum_HI_EEZ
1544 CenPac1986-2020_Final_alb_edited.das 489960 FALSE
stratum_OtherCNP stratum_WHICEAS year month day yday km_valid km_int
1544 TRUE FALSE 2012 5 7 128 TRUE 0
km_cum ship stratum use eff_bloc seg_id SightNo Subgroup SightNoDaily
1544 189739.1 OES OtherCNP FALSE 54-1 2309 052 <NA> 20120507_9
Obs ObsStd Bearing Reticle DistNm Cue Method Photos Birds CalibSchool
1544 238 TRUE 310 10 0.52 3 4 N N N
PhotosAerial Biopsy CourseSchool TurtleSp TurtleGs TurtleJFR TurtleAge
1544 N N NA <NA> NA <NA> <NA>
TurtleCapt PinnipedSp PinnipedGs BoatType BoatGs PerpDistKm species best
1544 <NA> <NA> NA <NA> NA 0.7377314 049 1
low high prob mixed ss_tot lnsstot ss_percent n_sp n_obs n_best n_low
1544 1 1 FALSE FALSE 1 0 1 1 1 1 1
n_high calibr ss_valid mixed_max spp_max included
1544 1 TRUE TRUE TRUE 049 FALSE
This is a sighting of a single Ziphiid whale. It appears to be within the geostratum:
Loooking at the raw DAS
data …
i <- which(substr(das$das, 6, 18) == '105409 050712')
das$das[(i[1] - 10):(i[1] + 3)]
[1] "135V.104143 050712 N05:57.61 W162:05.66 7 09 070 30.0"
[2] "136N.104143 050712 N05:57.61 W162:05.66 272 09.3"
[3] "137W.104143 050712 N05:57.61 W162:05.66 5 05 01 050 4.5"
[4] "138*.104234 050712 N05:57.62 W162:05.79"
[5] "139*.104434 050712 N05:57.62 W162:06.09"
[6] "140*.104634 050712 N05:57.63 W162:06.39"
[7] "141N.104713 050712 N05:57.63 W162:06.49 269 08.8"
[8] "142*.104834 050712 N05:57.63 W162:06.69"
[9] "143*.105034 050712 N05:57.63 W162:06.99"
[10] "144*.105234 050712 N05:57.63 W162:07.29"
[11] "145S.105409 050712 N05:57.62 W162:07.53 052 238 3 4 310 10.0 0.52 N N N"
[12] "146A.105409 050712 N05:57.62 W162:07.53 052 N N 049 "
[13] " 1 238 1 1 1 100"
[14] "147*.105434 050712 N05:57.62 W162:07.59"
Note that the Beaufort sea state for this sighting is 7. When the ABUND
routine was run, the INP
file instructed it to disregard any sightings beyond Bft 6. This is why ABUND
has no record of this sighting.
Cruise 1165, Species 047
In this case, LTabundR
has a systematic sighting of a pygmy sperm whale that ABUND
has ignored.
sight_compare(abund, ltabundr, 1165, '047')
ABUND:
# A tibble: 0 × 6
# ℹ 6 variables: CruzNo <int>, DateTime <chr>, Beauf <int>, Mixed <chr>,
# best <dbl>, use_sit <lgl>
LTabundR:
# A tibble: 1 × 9
Cruise DateTime Bft mixed best OnEffort EffType use_effort
<dbl> <dttm> <dbl> <lgl> <dbl> <lgl> <chr> <lgl>
1 1165 1988-07-30 19:28:00 0 FALSE 1.16 TRUE S TRUE
# ℹ 1 more variable: use_sit <lgl>
(ltabundr %>% filter(Cruise == 1165, species == '047'))[1,]
Event DateTime Lat Lon OnEffort Cruise Mode OffsetGMT
1390 S 1988-07-30 19:28:00 26.3 -121.1167 TRUE 1165 C NA
EffType ESWsides Course SpdKt Bft SwellHght WindSpdKt RainFog HorizSun
1390 S 2 163 10.5 0 NA NA 1 NA
VertSun Glare Vis ObsL Rec ObsR ObsInd EffortDot EventNum
1390 NA NA NA 038 068 051 <NA> TRUE 92
file_das line_num stratum_HI_EEZ
1390 CenPac1986-2020_Final_alb_edited.das 50173 FALSE
stratum_OtherCNP stratum_WHICEAS year month day yday km_valid km_int
1390 TRUE FALSE 1988 7 30 212 TRUE 0
km_cum ship stratum use eff_bloc seg_id SightNo Subgroup SightNoDaily
1390 15232.08 MAC OtherCNP TRUE 51-0 2279 07 <NA> 19880730_13
Obs ObsStd Bearing Reticle DistNm Cue Method Photos Birds CalibSchool
1390 051 TRUE 45 3.38 0.9 3 4 <NA> N <NA>
PhotosAerial Biopsy CourseSchool TurtleSp TurtleGs TurtleJFR TurtleAge
1390 <NA> <NA> NA <NA> NA <NA> <NA>
TurtleCapt PinnipedSp PinnipedGs BoatType BoatGs PerpDistKm species
1390 <NA> <NA> NA <NA> NA 1.178606 047
best low high prob mixed ss_tot lnsstot ss_percent n_sp n_obs
1390 1.15942 1 1.259921 FALSE FALSE 1.15942 0.1479201 1 1 3
n_best n_low n_high calibr ss_valid mixed_max spp_max included
1390 3 3 3 TRUE TRUE TRUE 047 TRUE
To investigate this sighting, we can filter our cruz
object and take a look at a map of this sighting:
Using that map we see that this sighting occurred just inside of the OtherCNP
geostratum. It is likely that the point-in-polygon subroutines inside ABUND9
decided that this sighting was out of the study area, and therefore excluded it. The subroutines used by LTabundR
, which are based in the R
package sf
, should not be wrong in this case.
Cruise 1621-073
In this case, both LTabundR
and ABUND
logged the same total number of sightings, but ABUND
determined that that one was not valid for for density estimation, whereas LTabundR
determined that two of them were not valid.
sight_compare(abund, ltabundr, 1621, '073')
ABUND:
# A tibble: 5 × 6
CruzNo DateTime Beauf Mixed best use_sit
<int> <chr> <int> <chr> <dbl> <lgl>
1 1621 2002-11-8 14:19 3 " F" 3.48 TRUE
2 1621 2002-11-20 16:2 4 " F" 3.97 TRUE
3 1621 2002-11-22 10:27 4 " F" 4.96 TRUE
4 1621 2002-11-22 12:20 4 " F" 1.16 TRUE
5 1621 2002-11-29 13:48 5 " F" 2.32 TRUE
LTabundR:
# A tibble: 7 × 9
Cruise DateTime Bft mixed best OnEffort EffType use_effort
<dbl> <dttm> <dbl> <lgl> <dbl> <lgl> <chr> <lgl>
1 1621 2002-11-08 14:19:04 3 FALSE 3.48 TRUE S TRUE
2 1621 2002-11-20 16:02:58 4 FALSE 3.97 TRUE S TRUE
3 1621 2002-11-22 10:27:28 4 FALSE 4.96 TRUE S TRUE
4 1621 2002-11-22 12:20:33 4 FALSE 1.16 TRUE S TRUE
5 1621 2002-11-29 13:48:49 5 FALSE 2.32 TRUE N TRUE
6 1621 2002-11-20 12:59:22 4 FALSE 1.16 FALSE S FALSE
7 1621 2002-11-21 11:57:55 4 FALSE 1.16 FALSE S FALSE
# ℹ 1 more variable: use_sit <lgl>
The discrepancy is in the November 8, 2002 sighting at 14:19:04. Looking at the sighting details from LTabundR
…
(ltabundr %>% filter(Cruise == 1621, species == '073'))[1,]
Event DateTime Lat Lon OnEffort Cruise Mode OffsetGMT
11736 S 2002-11-08 14:19:04 22.539 -171.7638 TRUE 1621 C 10
EffType ESWsides Course SpdKt Bft SwellHght WindSpdKt RainFog HorizSun
11736 S 2 108 9.4 3 5 10 1 3
VertSun Glare Vis ObsL Rec ObsR ObsInd EffortDot EventNum
11736 2 FALSE 6 200 073 208 <NA> TRUE 129
file_das line_num stratum_HI_EEZ
11736 CenPac1986-2020_Final_alb_edited.das 273857 TRUE
stratum_OtherCNP stratum_WHICEAS year month day yday km_valid km_int
11736 TRUE FALSE 2002 11 8 312 TRUE 0
km_cum ship stratum use eff_bloc seg_id SightNo Subgroup SightNoDaily
11736 91181.6 DSJ HI_EEZ TRUE 155-7 543 275 <NA> 20021108_57
Obs ObsStd Bearing Reticle DistNm Cue Method Photos Birds CalibSchool
11736 208 TRUE 93 0.5 2.75 6 4 Y N <NA>
PhotosAerial Biopsy CourseSchool TurtleSp TurtleGs TurtleJFR TurtleAge
11736 <NA> <NA> NA <NA> NA <NA> <NA>
TurtleCapt PinnipedSp PinnipedGs BoatType BoatGs PerpDistKm species
11736 <NA> <NA> NA <NA> NA 5.08602 073
best low high prob mixed ss_tot lnsstot ss_percent n_sp n_obs
11736 3.478261 3 3 FALSE FALSE 3.478261 1.246532 1 1 6
n_best n_low n_high calibr ss_valid mixed_max spp_max included
11736 6 6 6 TRUE TRUE TRUE 073 FALSE
LTabundR
was correct to exclude this sighting because the bearing was past the beam (93 degrees). The bearing of 93 is also given in the raw DAS
data…
das_file <- 'data/surveys/CenPac1986-2020_Final_alb.das'
das <- das_readtext(das_file)
i <- which(substr(das$das, 6, 18) == '141904 110802')
das$das[i]
[1] "129S.141904 110802 N22:32.34 W171:45.83 275 208 6 4 093 0.5 2.75"
[2] "130A.141904 110802 N22:32.34 W171:45.83 275 Y N 073"
… so it is not clear why ABUND
did not exclude this sighting as invalid as well. It may be that ABUND
was not expecting bearings above 90 degrees in the on-effort data.
Cruise 1631, Species 003
In this case, there was a non-systematic sighting of species 003 that was found by LTabundR
but not by ABUND
.
sight_compare(abund, ltabundr, 1631, '003')
ABUND:
# A tibble: 0 × 6
# ℹ 6 variables: CruzNo <int>, DateTime <chr>, Beauf <int>, Mixed <chr>,
# best <dbl>, use_sit <lgl>
LTabundR:
# A tibble: 1 × 9
Cruise DateTime Bft mixed best OnEffort EffType use_effort
<dbl> <dttm> <dbl> <lgl> <dbl> <lgl> <chr> <lgl>
1 1631 2006-09-02 07:35:14 5 TRUE NaN TRUE N TRUE
# ℹ 1 more variable: use_sit <lgl>
(ltabundr %>% filter(Cruise == 1631, species == '003'))
Event DateTime Lat Lon OnEffort Cruise Mode
2289 S 2006-09-02 07:35:14 19.28883 -156.8227 TRUE 1631 P
OffsetGMT EffType ESWsides Course SpdKt Bft SwellHght WindSpdKt RainFog
2289 10 N 2 155 10 5 4 18 1
HorizSun VertSun Glare Vis ObsL Rec ObsR ObsInd EffortDot EventNum
2289 10 2 FALSE 7 073 196 197 <NA> TRUE 026
file_das line_num stratum_HI_EEZ
2289 CenPac1986-2020_Final_alb_edited.das 405222 TRUE
stratum_OtherCNP stratum_WHICEAS year month day yday km_valid km_int
2289 TRUE TRUE 2006 9 2 245 TRUE 0
km_cum ship stratum use eff_bloc seg_id SightNo Subgroup SightNoDaily
2289 139591.4 Mc2 WHICEAS TRUE 217-1 1149 090 <NA> 20060902_51
Obs ObsStd Bearing Reticle DistNm Cue Method Photos Birds CalibSchool
2289 197 TRUE 59 0.3 4.12 2 4 N N <NA>
PhotosAerial Biopsy CourseSchool TurtleSp TurtleGs TurtleJFR TurtleAge
2289 <NA> <NA> NA <NA> NA <NA> <NA>
TurtleCapt PinnipedSp PinnipedGs BoatType BoatGs PerpDistKm species best
2289 <NA> <NA> NA <NA> NA 6.540392 003 NaN
low high prob mixed ss_tot lnsstot ss_percent n_sp n_obs n_best n_low
2289 NaN NA FALSE TRUE 3.478261 1.246532 NaN 2 1 1 1
n_high calibr ss_valid mixed_max spp_max included
2289 0 TRUE FALSE FALSE <NA> TRUE
The map indicates that this is not a geostratum boundary issue:
Looking at the raw DAS
data …
das$das[405190:405220]
[1] " C 120000 090106 In transit to study area Sep 1. A.J. 10/18/06."
[2] "001B.061813 090206 N19:28.97 W156:55.51 1631 p 10 Y"
[3] "002R.061813 090206 N19:28.97 W156:55.51 N"
[4] "003P.061813 090206 N19:28.97 W156:55.51 197 007 277"
[5] "004V.061813 090206 N19:28.97 W156:55.51 5 04 150 18.0"
[6] "005N.061813 090206 N19:28.97 W156:55.51 154 10.4"
[7] "006W.061813 090206 N19:28.97 W156:55.51 1 10 03 032 7.0"
[8] "007C.061823 090206 N19:28.94 W156:55.50"
[9] "008*.062019 090206 N19:28.63 W156:55.33"
[10] "009*.063019 090206 N19:27.12 W156:54.53"
[11] "010P.063950 090206 N19:25.68 W156:53.75 196 197 007"
[12] "011C.063950 090206 N19:25.68 W156:53.75"
[13] "012V.063950 090206 N19:25.68 W156:53.75 5 04 150 18.0"
[14] "013N.063950 090206 N19:25.68 W156:53.75 151 10.1"
[15] "014W.063950 090206 N19:25.68 W156:53.75 1 10 03 032 7.0"
[16] "015*.064019 090206 N19:25.61 W156:53.71"
[17] "016N.064253 090206 N19:25.22 W156:53.50 153 10.3"
[18] "017*.065019 090206 N19:24.11 W156:52.90"
[19] "018*.070019 090206 N19:22.62 W156:52.11"
[20] "019*.071019 090206 N19:21.10 W156:51.30"
[21] "020*.072019 090206 N19:19.59 W156:50.53"
[22] "021P.072113 090206 N19:19.46 W156:50.45 073 196 197"
[23] "022V.072113 090206 N19:19.46 W156:50.45 5 04 150 18.0"
[24] "023N.072113 090206 N19:19.46 W156:50.45 155 10.0"
[25] "024W.072113 090206 N19:19.46 W156:50.45 1 10 02 032 7.0"
[26] "025*.073019 090206 N19:18.09 W156:49.75"
[27] "026S.073514 090206 N19:17.33 W156:49.36 090 197 2 4 059 0.3 4.12 013"
[28] "027A.073514 090206 N19:17.33 W156:49.36 090 N N 177 003"
[29] " 1 197 3"
[30] "028*.074019 090206 N19:16.53 W156:48.94"
[31] "029V.074337 090206 N19:16.01 W156:48.67 4 04 150 12.0"
It appears that this was a multi-species sighting, but no species percentages were provided. In the absence of a percent composition estimate for this sighting, it was ignored by ABUND
.
Group sizes
This plot compares the group size estimates returned by ABUND9
and LTabundR
. The results should be identical:
# Format ABUND
abund <-
SIGHTS %>%
tidyr::pivot_longer(cols = 31:101,
names_to = 'species',
values_to = 'best') %>%
mutate(Region = gsub(' ','',Region)) %>%
filter(best > 0,
! Region %in% c('NONE', 'Off-Transect'),
EffortSeg > 0) %>%
select(Cruise = CruzNo, TotSS, LnTotSS, species, best) %>%
mutate(Software='ABUND9')
# Format LTabundR
ltabundr <-
cruz$cohorts$all$sightings %>%
filter(OnEffort == TRUE,
included == TRUE,
EffType %in% c('S', 'F')) %>%
select(Cruise, TotSS = ss_tot, LnTotSS = lnsstot, species, best) %>%
mutate(Software='LTabundR')
# Combine the datasets
ss <- rbind(abund, ltabundr)
# Plot the datasets
ggplot(ss,
aes(x=best,
y=factor(Cruise),
col=Software,
pch=Software)) +
geom_point(position=ggstance::position_dodgev(height=0.5),
alpha=.6) +
scale_x_continuous(trans='log', breaks=c(1,2, 5,10,25,50,100,500,1000,2500,5000)) +
xlab('log Estimated School Size') +
ylab('Cruise') +
theme_light()
Note two important differences in how the two programs calibrate group size:
(1) If an observer is not included in the Group Size Calibration Coefficients .DAT
file, ABUND
applies a default coefficient (0.8625
) to scale group size estimates; however, it applies this calibration to groups of *all** sizes, including solo animals or small groups of 2-3. In LTabundR
, this is also the default, but users can choose to restrict calibrations for unknown observers to group size estimates of any size (see load_cohort_settings()
).
(2) Note that ABUND9
calibrates school sizes slightly differently than earlier versions of the software. The ABUND9
release notes mention a bug in previous versions that incorrectly calibrated school size. LTabundR
corresponds perfectly with ABUND9
school size calibrations, but not with ABUND8
or earlier.
Effort
Perform basic formatting before doing any filtering , first for ABUND
data…
# Format ABUND
abund <-
EFFORT %>%
mutate(Region = gsub(' ','',Region)) %>%
mutate(dt = paste0(Yr,
stringr::str_pad(Mo, width=2, pad='0', side='left'),
stringr::str_pad(Da, width=2, pad='0', side='left'))) %>%
rename(Cruise = CruzNo, Date = dt, km = length) %>%
mutate(effort = ifelse(Region == 'Off-Transect', 'N or F', 'S')) %>%
mutate(OnEffort = 'TRUE') %>%
mutate(software = 'ABUND 9') %>%
select(Region:Cruise, Date, effort, software)
…then for LTabundR
data. This helper function will be used below to format our cruz
object:
ltabundr_prep <- function(cruz){
cruz$cohorts$all$das %>%
mutate(dt = gsub('-','',substr(DateTime, 1,10))) %>%
rename(Cruise = Cruise, Date = dt, km = km_int) %>%
mutate(effort = ifelse(EffType == 'S', 'S', 'N or F')) %>%
mutate(software = 'LTabundR') %>%
filter(OnEffort == TRUE) %>%
filter(!is.na(effort)==TRUE) %>%
group_by(software, Cruise, Date, effort) %>%
summarize(km = sum(km))
}
Here is one more helper function to generate an interactive plot that compares systematic effort for each cruise in ABUND
vs LTabundR
:
eff_plot <- function(abund, ltabundr){
# Join datasets
eff <-
rbind(abund %>% dplyr::select(Cruise, Date, km, effort, software),
ltabundr %>% dplyr::select(Cruise, Date, km, effort, software)) %>%
filter(effort == 'S') %>%
group_by(Cruise) %>%
summarize(km_abund = sum(km[software == 'ABUND 9']) %>% round,
km_ltabundr = sum(km[software == 'LTabundR']) %>% round)
# Prepare plot
p <-
ggplot(eff,
aes(x = km_abund,
y = km_ltabundr,
col=factor(Cruise))) +
geom_abline(slope=1, intercept=0, lty=3) +
geom_point(alpha=.6) +
ylab('LTabundR') +
xlab('ABUND9') +
scale_x_continuous(breaks = seq(0, 15000, by=2500)) +
scale_y_continuous(breaks = seq(0, 15000, by=2500)) +
labs(title='Effort per cruise', col='Cruise') +
theme_light()
print(p)
}
This helper function is a tabular version of the comparison plot:
error_table <- function(df){
dfi <-
df %>%
filter(effort == 'S') %>%
group_by(Cruise) %>%
summarize(year = lubridate::year(lubridate::ymd(Date))[1],
km_abund = sum(km[software == 'ABUND 9']) %>% round,
km_ltabundr = sum(km[software == 'LTabundR']) %>% round) %>%
mutate(diff = km_abund - km_ltabundr) %>%
mutate(prop = ((abs(diff) / km_abund)) %>% round(5)) %>%
arrange(desc(prop)) %>%
as.data.frame()
lm(km_ltabundr ~ km_abund, data=dfi) %>% summary %>% print
return(dfi)
}
Now we format the LTabundR
data and produce the comparison plot, which shows near-perfect correspondence:
# Format LTabundR data for comparison
ltabundr <- ltabundr_prep(cruz)
# Interactive plot
eff_plot(abund, ltabundr)
And here is the tabular version of that plot, sorted by the difference in KM, relative to total length of the Cruise (according to ABUND 9
). The statistical summary of a linear regression is also returned:
# Combine software data
df <- rbind(abund %>% select(software, Cruise, Date, effort, km),
ltabundr %>% select(software, Cruise, Date, effort, km))
# Produce comparison table
error_table(df)
Call:
lm(formula = km_ltabundr ~ km_abund, data = dfi)
Residuals:
Min 1Q Median 3Q Max
-8.659 -6.692 -2.933 3.094 34.505
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 5.6871663 2.3871073 2.382 0.0229 *
km_abund 1.0023296 0.0004711 2127.734 <0.0000000000000002 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 9.337 on 34 degrees of freedom
Multiple R-squared: 1, Adjusted R-squared: 1
F-statistic: 4.527e+06 on 1 and 34 DF, p-value: < 0.00000000000000022
Cruise year km_abund km_ltabundr diff prop
1 1426 1991 11 28 -17 1.54545
2 1628 2005 2 1 1 0.50000
3 1508 1993 3 2 1 0.33333
4 1081 1987 50 60 -10 0.20000
5 1108 2011 2493 2539 -46 0.01845
6 1203 2012 1492 1507 -15 0.01005
7 1623 2003 4970 5011 -41 0.00825
8 1604 2016 1557 1568 -11 0.00706
9 1303 2013 3814 3838 -24 0.00629
10 2001 2020 4417 4442 -25 0.00566
11 901 2009 2004 2013 -9 0.00449
12 1631 2006 4040 4058 -18 0.00446
13 1370 1990 5425 5447 -22 0.00406
14 1616 2000 4960 4979 -19 0.00383
15 1165 1988 3433 3446 -13 0.00379
16 1706 2017 8965 8999 -34 0.00379
17 1004 2010 1123 1127 -4 0.00356
18 1705 2017 7345 7370 -25 0.00340
19 1080 1987 4367 4381 -14 0.00321
20 1629 2005 11072 11106 -34 0.00307
21 1610 1998 3163 3172 -9 0.00285
22 1642 2010 6347 6365 -18 0.00284
23 1614 1999 5883 5899 -16 0.00272
24 1164 1988 804 806 -2 0.00249
25 1607 1997 6669 6685 -16 0.00240
26 1622 2002 4599 4610 -11 0.00239
27 1641 2010 11721 11746 -25 0.00213
28 1621 2002 12436 12462 -26 0.00209
29 1611 1998 4055 4063 -8 0.00197
30 1268 1989 3750 3757 -7 0.00187
31 990 1986 3793 3800 -7 0.00185
32 989 1986 747 748 -1 0.00134
33 1369 1990 923 924 -1 0.00108
34 1001 2010 1134 1135 -1 0.00088
35 1617 2001 1 1 0 0.00000
36 1624 2003 763 763 0 0.00000
Note that there are a few intentional design features that may produce differences in effort calculation and segment divisions between the ABUND9
and LTabundR
programs. Here are a few:
(1) LTabundR
works with DAS
data that are loaded and formatted using swfscDAS:das_read()
and das_process()
. It is possible that these functions categorize events as On- or Off-Effort slightly differently than ABUND
, or apply other differences that would be difficult for us to know or track.
(2) After loading the data, LTabundR
removes rows with invalid Cruise numbers, invalid times, and invalid coordinates. As far as we can tell, ABUND
does not remove such missing data. This is a relatively minor point; in processing the 1986-2020 data (623,640 rows), 287 rows are missing Cruise info; 1,430 are missing valid times; and 556 are missing valid coordinates, for a total of 2,273 rows removed out of more than 625,000 (0.3% of rows). Many of these rows with missing data have the exact same coordinates and timestamps as complete rows nearby, since WinCruz can sometimes produce multiple lines at the same time when setting up metadata for the research day, which means that this row removal will rarely, if ever, effect total effort calculated.
(3) In ABUND
, custom functions are used to calculate whether DAS coordinates occur within geostrata are difficult to validate, and it is possible that they differ from the functions used in R for the same purpose. LTabundR
uses functions within the well-established sf
package to do these same calculations.
(4) Both ABUND
and LTabundR
calculate the distance surveyed based on the sum of distances between adjacent rows in the DAS
file. They do this differently, which may yield minor differences in total effort segment track lengths, but the default inputs for the load_survey_settings()
function were selected to come as close to replicating the ABUND9
routine as possible. The ABUND9
routine (and therefore the LTabundR
defaults) allow for large gaps (as much as 100 km) between subsequent rows within a single day of effort. The ABUND9
subroutine prints a warning message when the gap is greater than 30 km, but does not modify its estimate of distance traveled. This allows for the possibility that, in rare cases, estimates of distance surveyed will be spuriously large.
(5) While ABUND
uses a minimum length threshold to create segments, such that full-length segments are never less than that threshold and small remainder segments always occur at the end of a continuous period of effort, LTabundR
uses an approach more similar to the effort-chopping functions in swfscDAS
: it looks at continuous blocs of effort, determines how many full-length segments can be defined in each bloc, then randomly places the remainder within that bloc according to a set of user-defined settings (see load_survey_settings()
. This process produces full-length segments whose distribution of exact lengths is centered about the target length, rather than always being greater than the target length.
(6) To control the particularities of segmentizing, LTabundR
uses settings such as segment_max_interval
, which controls how discontinuous effort is allowed to be pooled into the same segment. These rules may produce slight differences in segment lengths.
(7) Note that, since ABUND
is a loop-based routine while LTabundR
is modular, segments identified by the two program will never be exactly identical, and a 1:1 comparison of segments produced by the two programs is not possible.
